System Architecture

ForesightX uses focused microservices so that identity, market data, prediction, user context, and recommendation logic can evolve independently. The frontend and NGINX provide a unified product surface while the backend retains explicit ownership boundaries.

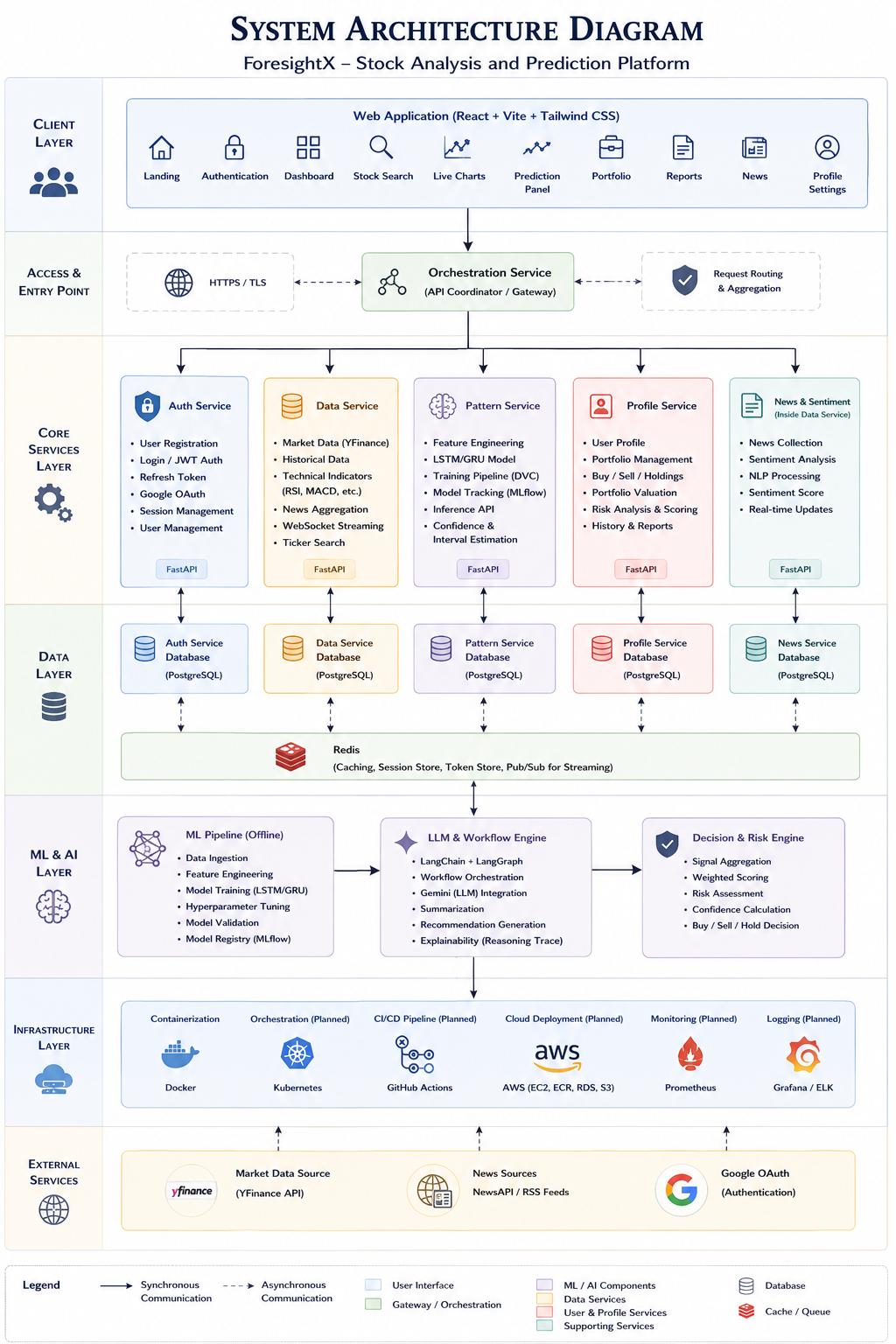

Runtime topology

Internet
  |
  v
NGINX reverse proxy
  |-- /                 -> React frontend
  |-- /api/auth/        -> Auth service
  |-- /api/profile/     -> Profile service
  |-- /api/data/        -> Data service
  |-- /api/pattern/     -> Pattern service
  `-- /api/orchestration -> Orchestration service

Backend containers do not need public host ports. They resolve one another by Docker service name and expose health endpoints for startup and operational checks.

Service ownership

Service	Owns	Primary dependencies
Frontend	User experience and client session state	NGINX API routes
Auth	Credentials, OAuth linkage, access and refresh tokens	PostgreSQL, Redis, Profile service
Data	Instruments, prices, indicators, news, streaming	Market providers, PostgreSQL, Redis
Pattern	Feature transformation and model inference	Model artifacts, MLflow/DVC metadata
Profile	User details, cash, positions, transactions, risk	PostgreSQL, Data service
Orchestration	Analysis jobs, workflow events, final recommendation	Data, Pattern, Profile, Gemini

Analysis request flow

1. The client sends POST /analyze to the orchestration route.
2. Orchestration validates the request and creates workflow state.
3. Market data, prediction, and user context are collected through service tools.
4. Signals are normalized and combined into an analysis view.
5. Gemini can produce a structured explanation; deterministic logic remains available as a fallback.
6. Risk checks constrain the result using exposure and volatility context.
7. The response returns the action, confidence, evidence, and trace while analysis events are persisted.

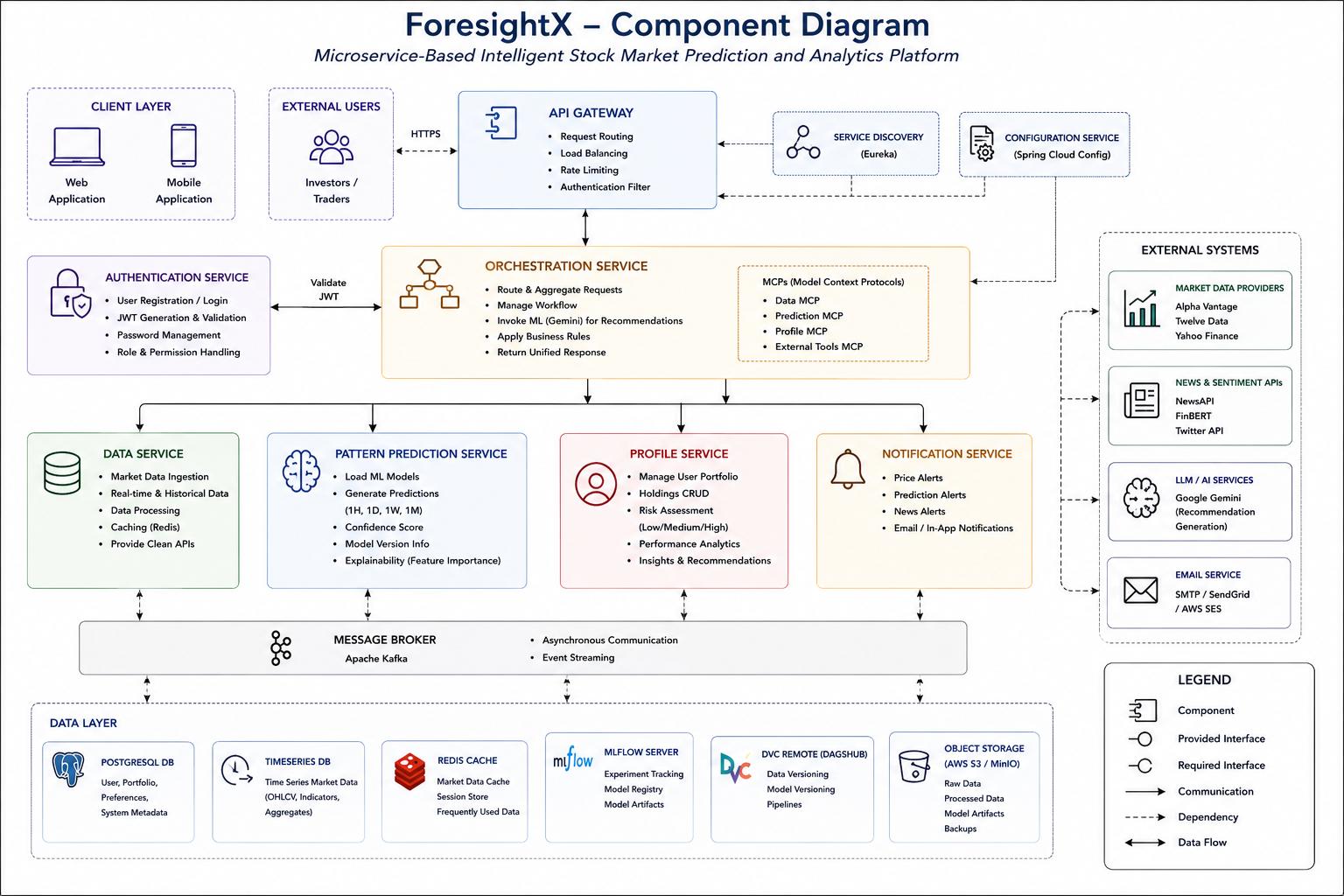

Component view

The component model shows a deliberate separation between presentation, API services, persistence, external providers, MLOps, and deployment infrastructure. This keeps external integrations at service boundaries instead of leaking them into the frontend.

Reliability strategy

• Redis caches market data and supports revocable session state.
• Services validate external responses before exposing normalized contracts.
• Health checks distinguish a running process from a functioning service.
• Orchestration can degrade to deterministic recommendation logic when AI assistance is unavailable.
• Each service can be restarted or scaled without rebuilding the whole application.

Data flow

The data service normalizes price, history, indicator, and news information. The pattern service consumes a defined historical feature window rather than reaching directly into another service's database. The profile service supplies only the portfolio and risk context required for analysis. Orchestration combines these API-level outputs and owns the resulting job trace.

This contract-first flow avoids cross-service database access and preserves independent migrations.
